Full cassette awning
T400 Square Full Cassette Awning
A square full-cassette awning with reinforced 6063-T5 aluminium folding arms, double-layer steel-chain tensioning, motorized remote operation and integrated linear LED arm lighting. Confirm the selected motor, remote and LED package with your quotation.
- Square full-cassette housing
- Reinforced 6063-T5 aluminium folding arms
- Double-layer steel-chain tensioning
- Motorized remote operation
- Integrated linear LED arm lighting
Available for custom quotation. Dimensions, supply configuration and technical specifications are confirmed with your quote. No online ordering is available.
Product Overview
T400 encloses the fabric, folding arms and drive mechanism in a square powder-coated aluminium cassette. Reinforced 6063-T5 arms combine double-layer steel-chain tensioning with enclosed joints and embedded linear LED lighting. The brochure also describes SUS304 key fasteners, cushioning rubber strips and a 4 mm support reference. Component dimensions and the complete project configuration are detailed below.
- Core configuration
- Enclosing full cassette with folding arms. Motorized remote operation is described. The exact motor, remote and mounting components are specified in the quotation.
- Options & selections
- LED arm lighting is optional. Fabric, color, finish and project dimensions are selections to confirm. Illustrations with lighting do not mean LED is included in every order.
Structure & Technical References

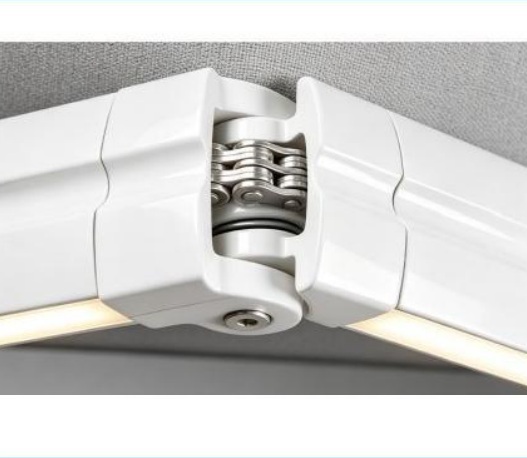

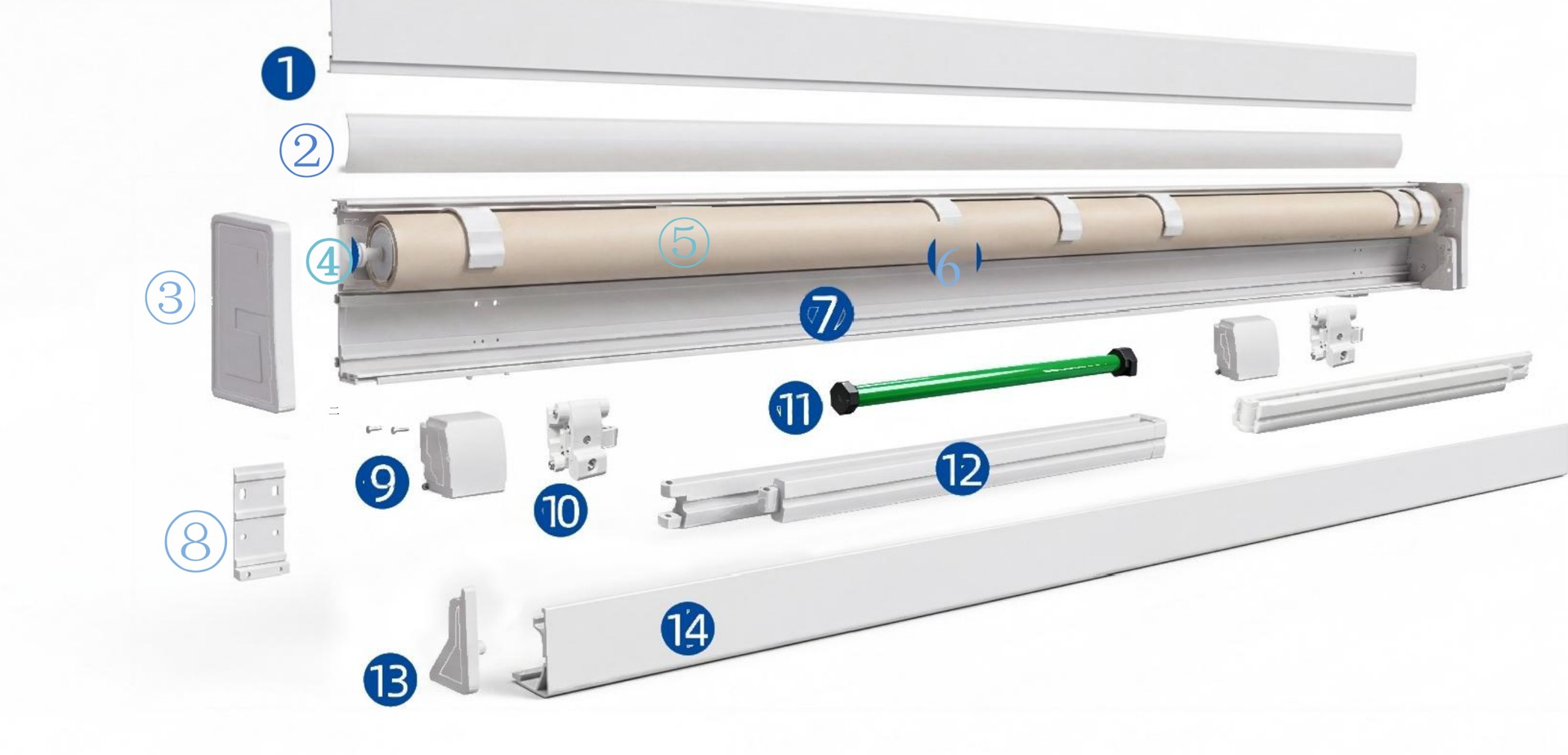

T400 arm and joint details from brochure page 3 appear alongside the page 5 shared T-series full-cassette exploded layout. The shared drawing explains the structure; it does not establish a T400-specific bill of materials. Click either image to enlarge.
- Large arm section / wall
- 66 × 35 mm / 2.3 mm
Only the documented nominal 1.5–2.5 m arm configuration.
- Small arm section / wall
- 63 × 35 mm / 2.1 mm
Only the documented nominal 1.5–2.5 m arm configuration.
- Longer-arm wall reference
- Approximately 3 mm for nominal 3.0–3.5 m arms
Approximate brochure reference, not a tolerance or model-specific approved size matrix.
- Construction
- 6063-T5 arms; square powder-coated cassette; double-chain structure; SUS304 fasteners and 4 mm support reference
Brochure description. Front-bar section is not specified (shown as /). Supply and complete BOM unconfirmed.
Arm values describe component cross-sections (width × height / wall thickness), not complete-awning dimensions. Front-bar section: not specified in the brochure. The 2.3 / 2.1 mm arm walls apply only to the nominal 1.5–2.5 m configuration; the nominal 3.0–3.5 m configuration has an approximately 3 mm wall reference. No approved size combination or load rating is implied.
Fabric, Finish & Controls
Swatches are references. Confirm the actual fabric brand, composition, code, sample, frame finish and electrical package with the quotation.
- Fabric
- SD and imported fabric swatches are shown on page 8. Confirm brand, composition, code and a current physical sample.
- Frame finish
- Moonlight grey and white finish references; final finish and local corrosion suitability require confirmation.
- Controls
- DOOYA motor and remote described; confirm the actual motor, voltage, frequency, wiring and LED controller.
Sizes & Custom Configuration
Send your opening width, preferred projection, mounting height, building surface, location and quantity. These inputs allow the quotation team to confirm a compatible awning configuration.
Confirm the complete T400 width/projection combination, mounting height, slope, clearance and anchoring for your building surface. Agree the fabric, frame finish, motor model, voltage and frequency, wiring, remote and LED control compatibility in the quotation. Request applicable performance documents, tested wind limits and written warranty terms for the selected configuration. Brochure component dimensions and shared T-series ranges are references, not an approved order-size matrix.
T-series shared reference only — not a final ordering commitment
Brochure page 9 lists widths 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7 m and nominal projections1.5, 2, 2.5, 3, 3.5 m. These are T-series planning references only, not confirmed T400 order sizes or every permitted width/projection pairing. Working angle can reduce actual projection; final dimensions and configuration require project approval.
- Confirm the building surface, fixing points, mounting height and clearance.
- Treat width and projection as a project-specific compatible pair.
- Confirm the front-bar and longer-arm configuration; the brochure does not provide a complete order matrix.
- Review fabric, frame finish, motor, remote and LED selections for the quotation.
- Describe drainage direction and any facade or opening constraints.
- Request applicable technical documents and warranty terms for the quoted configuration.
Residential & Commercial Applications
Plan adjustable shade for patios, decks, outdoor dining areas and commercial terraces. Confirm the mounting conditions, clearance and exposure for each opening.
FAQ
Is T400 a full-cassette awning?
Yes. The T series uses an enclosing cassette for the retracted fabric, folding arms and drive mechanism.
Can I order online?
This product is available for quotation inquiries only. There is no online checkout. Final dimensions, configuration, availability and price are confirmed in the quotation.
What is included in the T200 awning?
The T200 combines a rounded full cassette, chain-tensioned folding arms, wall-mounted supports, a front-bar drainage channel and a DOOYA motor with remote control. LED arm lighting is an available option.
What should I provide for a quotation?
Share the opening width, desired projection, mounting height, wall or support surface, project location and quantity. Add a site photo or drawing to help plan the bracket positions and awning clearance.
