Open-frame LED awning

KLSD-06 Luxury LED Awning

A luxury open-frame folding-arm awning with reinforced KL-03 chain arms, 304 stainless-steel chain tensioning and square-tube support. Integrated LED lighting and motorized remote operation bring adjustable shade and lighting together.

Open-frame folding-arm construction
KL-03 luxury chain-arm reference
304 stainless-steel chain tensioning
Square-tube support
Integrated LED and motorized remote
Black or white arm-set references

Request a Quote

Available for custom quotation. Dimensions, supply configuration and technical specifications are confirmed with your quote. No online ordering is available.

Product Overview

KLSD-06 is the luxury open-frame model on the left of brochure page 6. It uses the KL-03 reinforced chain-arm reference with thickened tube walls, square-tube support, motorized remote operation and integrated LED lighting. Black and white arm sets are described. It has no enclosing full cassette, and its arm components must not be substituted for the separate KSD-06 model.

Core configuration: Open-frame folding arms; no enclosing full cassette. Motorized remote operation is described. The exact motor, remote and mounting components are specified in the quotation.
Options & selections: LED arm lighting is optional. Fabric, color, finish and project dimensions are selections to confirm. Illustrations with lighting do not mean LED is included in every order.

Structure & Technical References

The KL-03 luxury chain arm supports the KLSD-06 open-frame design. The component image and technical details below follow page 6 of the latest brochure. Click the image to enlarge.

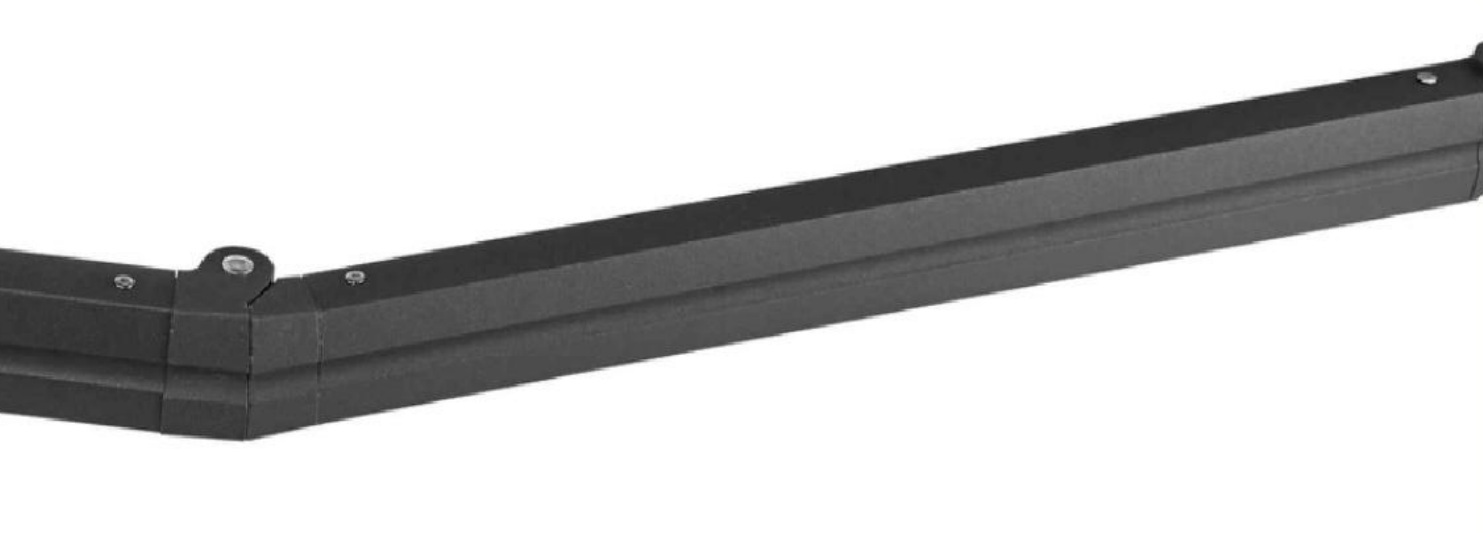

KL-03 luxury chain-arm component reference for KLSD-06. Marked component lengths are not approved complete-awning projections. — KL-03 chain-arm component reference. Click the image to enlarge; this drawing does not establish a complete-awning projection or order size.

KL-03 luxury chain arms: Reinforced folding arms with 304 stainless-steel chain tensioning. The brochure describes thickened tube walls and square-tube support for KLSD-06; section dimensions and wall thickness values are not specified.
Open-frame structure & lighting: Open folding-arm construction with integrated LED lighting and motorized remote operation. Black or white arm sets are described; confirm the selected finish and control package in the quotation.
Component arm lengths: 1.5–4.0 m: KL-03 marked lengths are 1.5, 2.0, 2.5, 3.0, 3.5 and 4.0 m. These are arm-component specifications, not a complete-awning projection range or an approved order-size matrix. Confirm overall width, usable projection and mounting clearance for your project.

Fabric, Finish & Controls

Swatches are references. Confirm the actual fabric brand, composition, code, sample, frame finish and electrical package with the quotation.

SD fabric swatches and codes; reference colors only. Confirm current samples and availability.

Fabric: SD and imported fabric swatches are shown on page 8. Confirm brand, composition, code and a current physical sample.
Frame finish: Black or white arm sets described on page 6; confirm the complete frame finish.
Controls: Motorized remote operation and integrated LED described; confirm the motor brand, electrical configuration and controller compatibility.

Sizes & Custom Configuration

Send your opening width, preferred projection, mounting height, building surface, location and quantity. These inputs allow the quotation team to confirm a compatible awning configuration.

Confirm the complete KLSD-06 width and usable projection, mounting height, slope, clearance and anchoring for your building surface. Agree the fabric, finish, motor model, voltage and frequency, wiring, remote, LED specifications and controller compatibility in the quotation. Request applicable performance and market conformity documents, tested wind limits and written warranty terms for the selected configuration. KL-03 arm lengths are component references only, not a whole-awning projection range. Listed standards do not establish certification; this open-frame awning is not an all-weather roof.

The T-series reference table does not apply to this open-frame K-series model. Confirm complete-awning width and usable projection separately; component arm lengths do not establish a size matrix.

Review the size guide

Residential & Commercial Applications

Plan adjustable shade for patios, decks, outdoor dining areas and commercial terraces. Confirm the mounting conditions, clearance and exposure for each opening.

Patios & decks Commercial projects LED options

FAQ

Is KLSD-06 a full-cassette awning?

No. KLSD-06 is an open-frame folding-arm awning. It does not have the enclosing cassette used by the T series.

Can I order online?

This product is available for quotation inquiries only. There is no online checkout. Final dimensions, configuration, availability and price are confirmed in the quotation.

What is included in the KLSD-06 awning?

KLSD-06 is an open-frame folding-arm awning with reinforced chain arms, 304 stainless-steel chain tensioning, motorized remote operation and integrated LED lighting.

What should I provide for a quotation?

Share the opening width, desired projection, mounting height, wall or support surface, project location and quantity. Add a site photo or drawing to help plan the bracket positions and awning clearance.
